Hardver jellemzők

Csatlakozások
1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45)

Gomb
Reset

Hálózati tápegység
802.3at PoE

Energiafelvétel
18.4W (for PoE+)

Méretek (Sz x Mé x Ma)
8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm)

Antenna
2.4 GHz:
2 × 4.5 dBi, external omnidirectional antennas
2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°)

5 GHz:
2 × 5.3 dBi, external omnidirectional antennas
2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°)

Note: The gains above are the single-antenna peak gains.

Bluetooth
BLE 5.2

Weatherproof Enclosure
IP66

Felszerelés
Pole/Wall Mounting (Kits included)

Vezeték nélküli jellemzők

Wi-Fi sztenderd
IEEE 802.11a/g/b/n/ac/ax/be

Frekvencia
2.4 GHz, 5 GHz

Adatátvitel
688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)

Vezeték nélküli funkciók
4k-QAM
OFDMA
Multiple SSIDs: 16 (8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MLO
Omada Mesh §
Seamless Roaming(802.11k/v/r) §
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Static IP/Dynamic lP

Vezeték nélküli biztonság
Captive Portal Authentication §
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE

Átviteli teljesítmény
CE: (EIRP)
2.4 GHz: 20 dBm
5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C
FCC: (Conducted Power)
2.4 GHz: 25 dBm
5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3

Vezérlés

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access
Yes. Require the use of an Omada controller.

Riasztás e-mailben
Yes

Mac-cím alapú vezérlés
Yes

SNMP
v1, v2c, v3

Syslog helyi/távoli
Yes

SSH
Yes

Webes felelületű vezérlés
Yes

L3 Management
Yes

Multi-site vezérlés
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller

Egyéb jellemzők

Tanúsítványok
CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI

Csomagolás tartalma

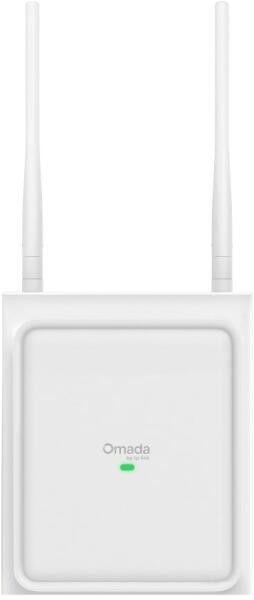

Access Point EAP725-Outdoor
Waterproof Kit
Mounting Kit
Installation Guide

Rendszerkövetelmény
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Környezet
Operating Temperature: -30 to 70 ? (-22 to 158 ?)
Storage Temperature: -40 to 70 ? (-40 to 158 ?)
Operating Humidity: 10 to 90% RH non-condensing
Storage Humidity: 5 to 90% RH non-condensing

Súly
Main Unit: 1.33 kg
